Understanding the Physical Layer in the OSI Model: Key Components and Functions

The Physical Layer is the foundation of the OSI model and plays a critical role in data transmission across networks. It is responsible for transmitting raw binary data over physical media, ensuring that signals are correctly sent from one device to another. This layer is essential in understanding how data travels through cables, fiber optics, or wireless networks.

In this article, we’ll explore the physical layer's key components, its interaction with other OSI layers, and how signals are transmitted across different mediums.

What Is the Physical Layer?

The Physical Layer in the OSI model is the lowest layer, directly interacting with the physical hardware components of a network. It defines the electrical, mechanical, and procedural aspects of communication, such as cabling, wiring, frequencies, and signal types. The primary function of the physical layer is to convert data into electrical, optical, or radio signals suitable for transmission through various media.

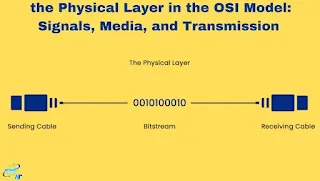

This layer is vital for converting frames from the Data Link Layer into signals that can be transmitted over the network. Once the physical layer receives data from the data link layer, it translates the data into electrical pulses (for wired networks) or electromagnetic waves (for wireless networks). These signals travel through the transmission media, ensuring that the data reaches its destination.

Key Functions of the Physical Layer

• Signal Encoding: Converts data into signals suitable for transmission.
• Data Transmission: Transmits raw bits across the physical medium.
• Signal Reception: Receives incoming signals and converts them back into binary data for the Data Link Layer.

The physical layer is directly involved in data encoding and decoding, ensuring that the data is properly transmitted and received over a network.

Analog vs. Digital Signals

Data can be transmitted in analog or digital formats. Let’s explore these types of signals:

• Analog Signals: These signals are continuous, varying in amplitude and frequency. Analog signals can take any value within a given range. For example, voice transmission through a telephone is an analog signal because it continuously varies.

• Digital Signals: Unlike analog signals, digital signals are discrete. They represent data as a sequence of 1s and 0s (binary data). Digital signals are used in modern networking and provide better noise resistance compared to analog signals.

Both analog and digital data can be converted into respective signal types. For example, analog data like human voice can be transformed into analog signals, while digital data such as files on a computer system are transmitted as digital signals.

Periodic and Non-Periodic Signals

Signals can also be categorized into periodic and non-periodic signals:

• Periodic Signals: These signals repeat at regular intervals. A sine wave is the most common example of a periodic analog signal. The periodic nature of a signal can be defined by parameters such as frequency (the number of cycles per second), amplitude (the height of the wave), and phase (the position of the wave relative to time).

• Non-Periodic Signals: These signals do not repeat and vary over time without any predictable pattern. These can represent complex or transient data, like those transmitted in burst modes or when data changes rapidly.

Key Characteristics of Signals in the Physical Layer

Several characteristics define how signals behave in the physical layer:

1. Peak Amplitude

Peak amplitude refers to the highest point in a signal’s waveform. It is crucial because it determines the strength of the signal and its ability to travel through the transmission medium. The higher the peak amplitude, the stronger the signal.

2. Frequency and Period

• Frequency is the number of cycles a signal completes in one second, measured in Hertz (Hz). The higher the frequency, the more data can be transmitted in a given time frame.
• Period refers to the time it takes for the signal to complete one cycle. The period and frequency are inversely related, meaning as the frequency increases, the period decreases.

3. Wavelength

Wavelength refers to the physical length of one cycle of the signal. It is determined by both the frequency of the signal and the propagation speed in the medium. For example, in fiber-optic networks, the wavelength of light signals plays a crucial role in determining the speed and distance data can travel.

Transmission Impairments in the Physical Layer

As signals travel through transmission media, they can degrade due to various factors:

• Attenuation: As the signal moves across a medium, it loses strength due to distance. The farther the signal travels, the weaker it becomes. This is why signal amplifiers are used to boost signals over long distances.

• Dispersion: Dispersion occurs when the signal spreads out over time, leading to a loss in signal quality. It’s a particular concern for high-speed networks, especially in fiber-optic systems.

• Noise: External interference from various sources can distort the signal. This noise can be categorized into types like thermal noise, intermodulation, crosstalk, and impulse noise.

Transmission Media: Guided vs. Unguided

The physical layer uses different types of transmission media to send signals:

• Guided Media: This includes cables like coaxial cables, fiber optics, and unshielded twisted pairs (UTP). These media guide the signals from the sender to the receiver in a controlled manner.

• Unguided Media: This refers to wireless transmission, where signals are sent through the air using radio waves, microwaves, or infrared signals. Unlike guided media, unguided media doesn’t have a physical connection between sender and receiver.

Channel Capacity and Data Rate

Channel capacity refers to the maximum data rate that a transmission medium can handle. It depends on factors like:

• Bandwidth: The available frequency range in the medium, which determines how much data can be transmitted per second.
• Error Rate: The likelihood that errors will occur during transmission due to noise.
• Encoding: The number of signal levels used to represent data. The more levels available, the higher the data rate.

Multiplexing and Switching

• Multiplexing: This technique allows multiple data streams to be sent over a single medium, optimizing the use of available bandwidth. Multiplexers (MUX) combine multiple signals, and demultiplexers (DMUX) separate them at the destination.

• Switching: This refers to the process of directing data from one device to another within a network. Switching can occur in packet-switched networks, where data is broken into smaller packets and routed independently.

The Physical Layer plays a crucial role in data transmission across networks, ensuring that binary data is transformed into electromagnetic signals that can travel across various transmission media. From analog and digital signals to bandwidth limitations, noise, and signal degradation, understanding the physical layer's function is key to building efficient, high-speed networks.

By optimizing the components and ensuring the reliability of the physical media, network administrators can achieve a seamless data transfer experience, helping organizations maintain robust communication systems.
