Understanding Network Switches and Switching Techniques: A Complete Guide
A Comprehensive Guide to Network Switches and Switching Techniques
Network switches are essential devices that power modern digital communication. They are used to connect various devices in a computer network, enabling data to be transferred efficiently. In this article, we will explore what network switches are, how they function, and the different switching techniques used to ensure optimal data transmission. By the end of this guide, even if you're unfamiliar with networking, you'll gain a solid understanding of the subject.
What is a Network Switch?
A network switch is a hardware device that connects multiple devices, such as computers, printers, and servers, within a local area network (LAN). It operates at the data link layer (Layer 2) of the OSI model and uses MAC addresses (unique identifiers assigned to each device) to forward data packets to the correct destination.
In simpler terms, when you send data (like an email or a file) across a network, the switch ensures that the data reaches the correct device. A network switch functions like a traffic controller, directing data packets to the correct location.

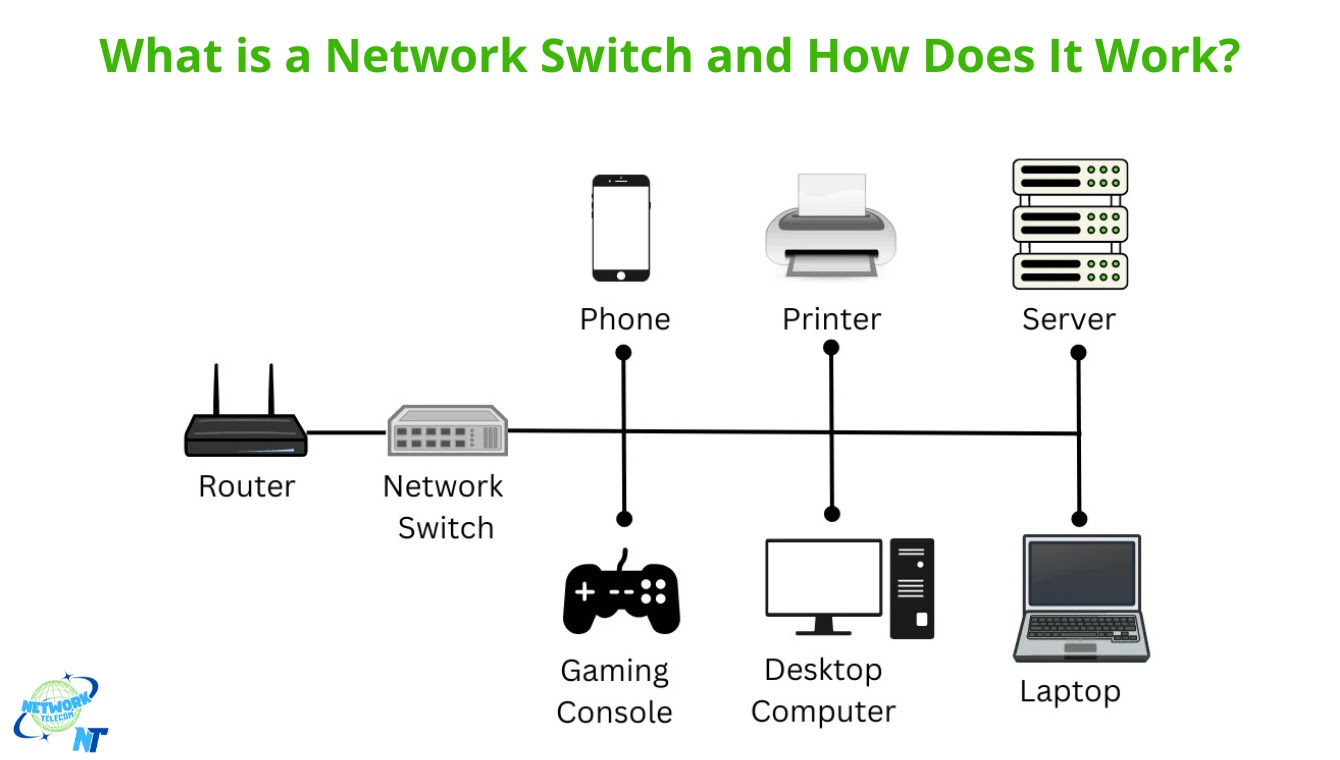

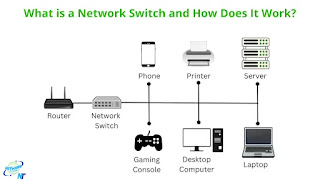

How Does a Network Switch Work?
The switch works by receiving a data packet, examining its MAC address, and forwarding the packet to the correct device. Unlike older network hubs, which broadcast data to all devices on a network, switches are smarter. They only send data to the device that needs it.
Steps in Data Transmission by a Switch:
- Data Reception: The switch receives a packet of data.
- MAC Address Lookup: The switch checks the destination MAC address of the packet.
- Forwarding: Based on the destination address, the switch forwards the data packet to the correct port.
- Data Delivery: The data is successfully received by the destination device.
Different Types of Switching Techniques
While a network switch is the tool used to forward data packets, switching techniques are the methods employed to manage the routes taken by data in a network. The way data is handled, transmitted, and routed depends on the switching technique used.
The primary switching techniques include circuit switching, message switching, and packet switching. Let’s take a closer look at each one.
1. Circuit Switching
Circuit switching is one of the oldest and most traditional techniques used in networking. It involves establishing a dedicated communication path between the sender and the receiver. This path remains open for the entire duration of the communication, even if no data is being transmitted.
How Does Circuit Switching Work?
- Connection Establishment: A dedicated path is created between the sender and receiver.
- Data Transfer: Data is transmitted over the established path.
- Disconnection: Once the communication is complete, the path is disconnected.
This technique is most commonly seen in traditional telephone networks, where a call establishes a continuous communication channel until the call ends.
Advantages:
- Consistent and Reliable: The connection is dedicated, so data can flow without interruption.
- Fixed Bandwidth: The bandwidth is reserved for the entire duration of the communication, providing consistent speed.
Disadvantages:
- Inefficient: If the path is idle and no data is being transmitted, the bandwidth is wasted.
- Expensive: Maintaining dedicated paths for each communication is costly.
2. Message Switching
Message switching is a more dynamic approach to data transmission. Instead of establishing a dedicated path, data is sent in the form of complete messages. These messages are routed through intermediate nodes, where they are stored and forwarded.
How Does Message Switching Work?
- Message Creation: The sender creates a message and appends the destination address.
- Storage and Forwarding: The message is temporarily stored at intermediate nodes before being forwarded to the next node.
- Message Delivery: The message reaches the receiver after passing through several intermediate nodes.
Message switching is commonly used in systems where reliable, store-and-forward communication is needed, like in email systems.
Advantages:
- Dynamic Routing: Messages can be rerouted based on available network paths.
- Efficient Bandwidth Usage: Data channels are shared, improving overall network efficiency.
Disadvantages:
- Storage Requirements: The network switches need enough storage to temporarily hold messages.
- Latency: Since messages are stored and then forwarded, this can introduce delays.
3. Packet Switching
Packet switching is the most modern and widely used technique in data networks, particularly in the Internet. In packet switching, the data message is split into smaller units called packets, which are transmitted independently over the network.
How Does Packet Switching Work?
- Data Splitting: The message is divided into packets, each with its destination information.
- Packet Routing: Each packet is sent through the network using the shortest available route. The packets may take different paths to reach the destination.
- Reassembly: Once all packets reach the destination, they are reassembled in the correct order to form the original message.
Packet switching is connectionless—there's no need to establish a dedicated connection between the sender and receiver before transmission.
Advantages:
- Efficient and Flexible: Multiple packets can travel simultaneously across different routes.
- Scalable and Cost-Effective: No dedicated paths are required, reducing infrastructure costs.
Disadvantages:
- Complexity: Managing packets and reassembling them requires more advanced protocols.
- Packet Loss: In the event of network congestion, packets may be lost and require retransmission.
Types of Packet Switching:
There are two types of packet switching:
- Datagram Packet Switching (Connectionless): Each packet is sent independently, and intermediate nodes make routing decisions for each packet.
- Virtual Circuit Packet Switching (Connection-Oriented): A predefined path is established before sending the packets. The path remains fixed for the duration of the communication.
Choosing the Right Switching Technique
Each switching technique has its own strengths and weaknesses. The choice of switching method depends on the nature of the network, the type of communication, and the required performance.
- Circuit switching is best suited for applications that require constant, dedicated connections (e.g., voice calls).
- Message switching works well for communication where each message is independent, and temporary storage can be used.
- Packet switching is ideal for most modern data networks, including the internet, as it efficiently handles large volumes of data, is scalable, and can accommodate various traffic types.
In today’s digital age, understanding network switches and switching techniques is essential for anyone involved in networking. Whether you’re setting up a home network or managing a corporate infrastructure, knowing how switches and their switching techniques work can help you optimize your network for speed, reliability, and cost-efficiency. The three main switching techniques—circuit switching, message switching, and packet switching—each serve different purposes, and the right choice depends on your network's needs.
By understanding the role of network switches and their switching methods, you’ll be better equipped to make informed decisions about your network setup, ensuring smooth and efficient communication across devices.
